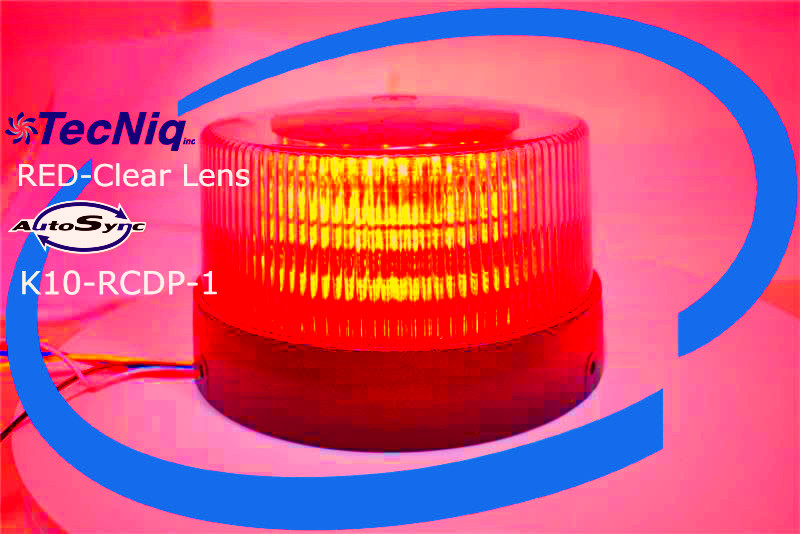

RED Clear Lens Beacons from TecNiq with AutoSync!

TecNiq K10 RED Public Safety BEACONS

Features:

TecNiq’s LED omni-directional K10 beacon light is ideal for Emergency vehicles.

The K10 Heavy DUTY High Performance warning light is designed for use in the most extreme environments and comes with TecNiq’s lifetime warranty.

The beacon light is available with AutoSync flash,TecNiq’s patent-pending technology
enables multiple lights to hold a synchronized flash pattern without the added cost of a light
control or interconnection between lamps.

Beacons are SAE J845 Class 1A and Class 2A compliant with a fully sealed
polycarbonate lens and 24 attention-grabbing LEDs providing 360° of coverage.

The K10 beacon is waterproof and shock resistant.
Installation of the 12/24 VDC beacon light is straightforward with the included 8.5” wire lead.

It’s available in surface or 1” pole mount configurations and can be fitted upside down.

It measures 6.35” wide at the base and 4” high.

• IP68 Rated – Dust and Waterproof
• Approval: SAE J845 Class 1, California Title 13
• Power: 12V/24 VDC
• Surface or 1” pole mount option
• Multiple flash patterns
• Black powder coated die cast aluminum base
• Includes mounting gasket to protect vehicle surface
• Optional chrome plated steel brush guard
• Lifetime Warranty

Specifications:

Dimensions:   7.04" diameter x 4.6" Tall (with optional brush guard)
LEDs:     24
Voltage:     12/24 VDC
Current:     Hi - ≈ 0.7A (average) – 1.7A (peak)
Lo - ≈ 0.17A (average) – 0.3A (peak)
Wire: 8.5" pigtail
Mounting:     Surface or Pole Mount (1" NPT width)
LED Colors:     RED

Autosync Version 5 Wire Pigtail

Colors:
Red Wire      12V DC Power
Black Wire    Ground
Yellow Wire   Low Intensity(Night Mode)
White Wire    Flash Pattern Change
Blue Wire w/ white stripe    Wig-Wag wire (AutoSync)Connect to power for opposite phase

K10-RCDP-1     K10 RED Beacon Light CLEAR Lens with AutoSync
